MEDiCINe

Motion Estimation by Distributional Contrastive Inference for Neurophysiology

Introduction

MEDiCINe is a method for estimating motion in neurophysiology data for spike sorting. See our publication for a complete description of the method and results. The general idea of MEDiCINe is to decompose neural activity data into two components:

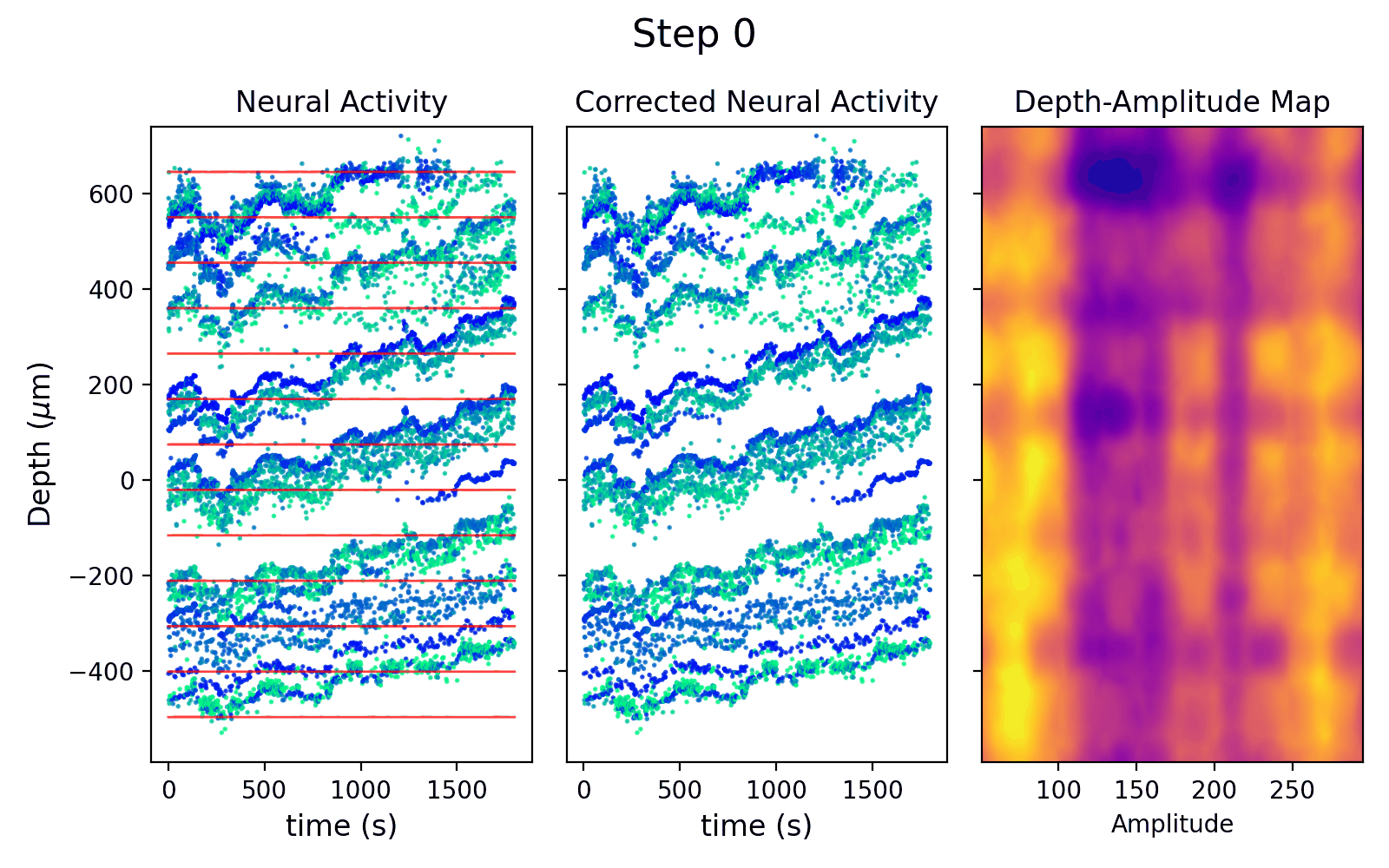

These two components are jointly optimized via gradient descent to maximize the likelihood of a dataset of detected spikes extracted from a neural recording session. Here is a video of this optimization process in action:

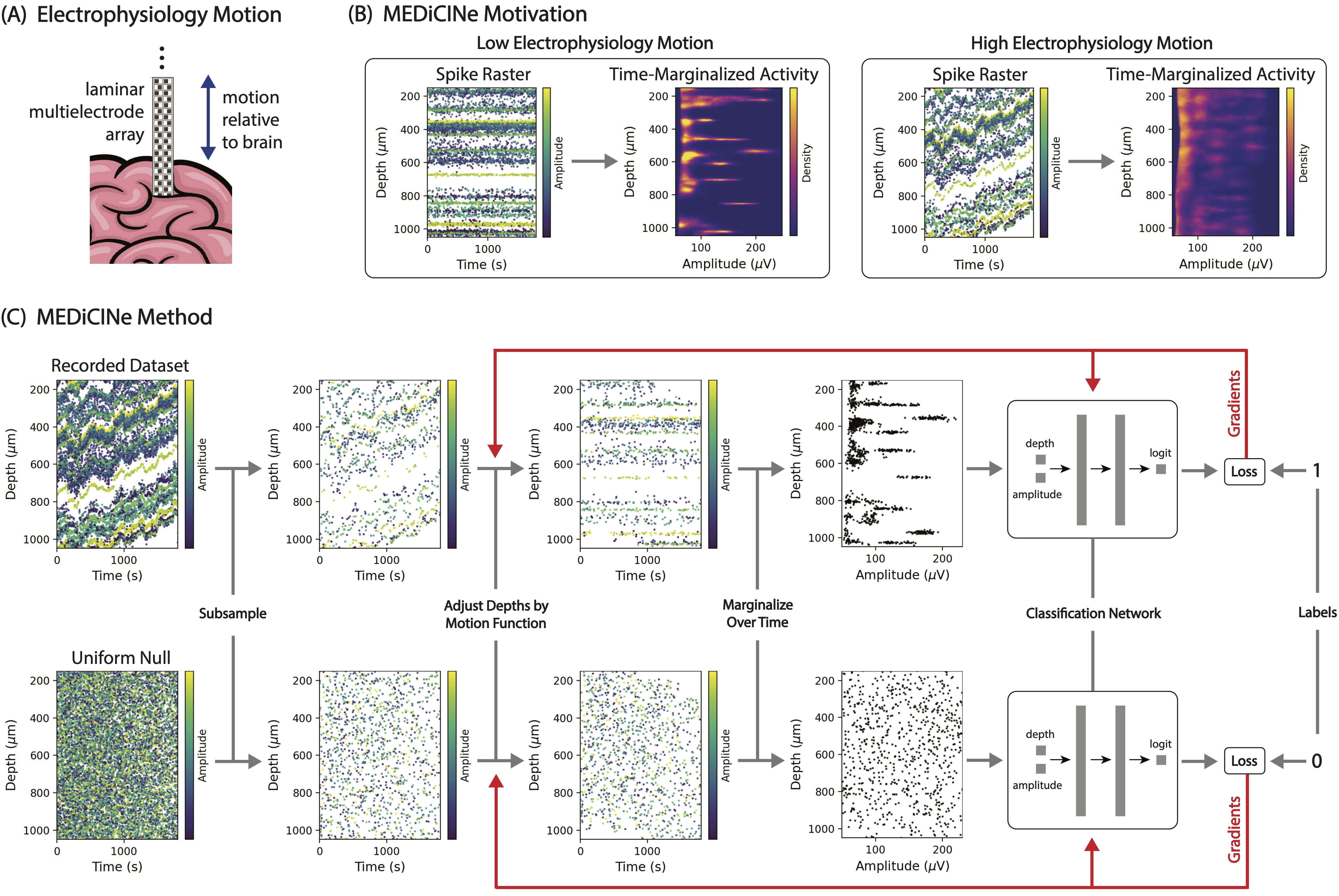

The red curves on the left show the motion learned by the model, the heatmap on the right show the activity distribution learned by the model and the scatterplots show detected spikes (colored by amplitude). Below is a schematic of the model:

Usage

Getting Started

We recomend using a virtual environment (e.g. conda or pipenv) to manage dependencies. Once in a virtual environment with python version at least 3.9.6, install MEDiCINe with:

pip install medicine-neuro

This will also install the necessary dependencies. Then you can run the demo script with

python -m medicine_demos.run_demo

This will run the demo script and display several figures showing the results. See medicine_demos/run_demo.py for more details.

SpikeInterface Integration

Once you have installed the medicine-neuro package, you can use it to do motion correction in a SpikeInterface data processing pipeline. SpikeInterface peak detection methods require the numba package ($ pip install numba). Using the currently most recent SpikeInterface version 0.102.1, here is an example SpikeInterface pipeline with peak extraction and motion correction using MEDiCINe motion estimation:

from pathlib import Path
import medicine
import numpy as np

from spikeinterface.core.motion import Motion
from spikeinterface.sortingcomponents.motion.motion_interpolation import InterpolateMotionRecording
from spikeinterface.sortingcomponents.peak_detection import detect_peaks
from spikeinterface.sortingcomponents.peak_localization import localize_peaks

# SpikeInterface recording object you would like to do motion correction for
recording = ...

# Detect, extract, and localize peaks, such as with the following pipeline
peaks = detect_peaks(recording, method="locally_exclusive")
peak_locations = localize_peaks(recording, peaks, method="monopolar_triangulation")

# Create directory to store MEDiCINe outputs for this recording
medicine_output_dir = Path('path/to/medicine/output/directory')
medicine_output_dir.mkdir(parents=True, exist_ok=True)

# Run MEDiCINe to estimate motion
medicine.run_medicine(
    peak_amplitudes=peaks['amplitude'],
    peak_depths=peak_locations['y'],
    peak_times=peaks['sample_index'] / recording.get_sampling_frequency(),
    output_dir=medicine_output_dir,
)

# Load motion estimated by MEDiCINe
motion = np.load(medicine_output_dir / 'motion.npy')
time_bins = np.load(medicine_output_dir / 'time_bins.npy')
depth_bins = np.load(medicine_output_dir / 'depth_bins.npy')

# Use interpolation to correct for motion estimated by MEDiCINe
motion_object = Motion(
    displacement=motion,
    temporal_bins_s=time_bins,
    spatial_bins_um=depth_bins,
)
recording_motion_corrected = InterpolateMotionRecording(
    recording,
    motion_object,
    border_mode='force_extrapolate',
)

# Continue with spike sorting or other processing on recording_motion_corrected.
# If you run a spike sorter with built-in motion correction, you may want to
# turn off that motion correction. If you use the SpikeInterface sorter module,
# this would entail `sorters.run_sorter(do_correction=False, ...)`.

Kilosort4 Integration

If you are using Kilosort4 for spike-sorting, we recommend using a SpikeInterface pipeline to run MEDiCINe as shown above. However, if you prefer to use Kilosort4 directly without SpikeInterface, you may still use MEDiCINe for motion correction. The easiest way to do this is to modify Kilosort4’s datashift.py file directly. Using the currently most recent Kilsort4 version 4.0.19, this entails overriding the run() function in datashift.py as follows:

import medicine

def run(ops, bfile, device=torch.device('cuda'), progress_bar=None,
        clear_cache=False):
    # Extract spikes
    st, _, ops  = spikedetect.run(
        ops, bfile, device=device, progress_bar=progress_bar,
        clear_cache=clear_cache,
    )

    # Run MEDiCINe to estimate motion
    medicine_output_dir = ops['data_dir'] / 'medicine_output'
    medicine.run_medicine(
        peak_amplitudes=st[:, 2],
        peak_depths=st[:, 1],
        peak_times=st[:, 0],
        output_dir=medicine_output_dir,
        training_steps=2000,
    )
    motion = np.mean(np.load(medicine_output_dir / 'motion.npy'), axis=1)
    dshift_indices = np.linspace(0, len(motion), ops['Nbatches'] + 1)
    dshift_indices = np.floor(dshift_indices).astype(int)[:-1]
    dshift = motion[dshift_indices]

    # Continue Kilosort processing
    ops['yblk'] = np.array([-1])
    ops['dshift'] = dshift
    xp = np.vstack((ops['xc'],ops['yc'])).T
    Kxx = torch.from_numpy(kernel2D(xp, xp, ops['sig_interp']))
    iKxx = torch.linalg.inv(Kxx + 0.01 * torch.eye(Kxx.shape[0]))
    ops['iKxx'] = iKxx.to(device)

    return ops, st

Hyperparameters

Here are descriptions of all of the hyperparameters in the MEDiCINe method:

The MEDiCINe model is not sensitive to most of these hyperparameters. We have never needed to tune hyperparameters for any of dozens of our NHP neurophysiology datasets. The only parameters we can imagine may be necessary to tune are motion_bound, time_kernel_width, and amplitude_threshold_quantile.

Troubleshooting Results

After running MEDiCINe, check the figures it produces (figures will be written to the output directory, printed to the console as the model runs). The most useful figure to look at is corrected_motion_raster.png. If you see unsatisfactory results in this figure, here are some potential problems and resolutions:

  1. Overfitting. If you have very few neurons or low firing rates, you may find that the motion estimation overfits and looks excessively wiggly. In this case, you may want to try setting num_depth_bins = 1, which will enforce uniform (rigit) motion and reduce overfitting. You may also want to increase the motion smoothing kernel size time_kernel_width.
  2. Underfitting. If your data has high-frequency motion and it looks like the motion is not capturing this, you may want to reduce time_kernel_width. If your motion has non-linear dependencies on depth, you may want to increase num_depth_bins.
  3. Insufficient motion amplitude. If it looks like you have high-amplitude motion that MEDiCINe is not capturing that, try increasing motion_bound.
  4. Bad spikes. If spike detection is poor, you may have a lot of bad spikes, such as low-amplitude spikes that are specific to particular channels and do not show motion. In this case increase amplitude_threshold_quantile. For example, setting amplitude_threshold_quantile = 0.25 will ignore the lowest-amplitude 25% of spikes. If high-amplitude spikes are the issue, set amplitude_threshold_quantile < 0.

Reproducing Our Results

To reproduce the results in our paper, please see https://github.com/jazlab/medicine_paper. This has all code and instructions for replicating our results.

Contact and Support

Please see CONTRIBUTING.md for information about support. Please email Nick Watters at nwatters@mit.edu with questions and feedback.

Reference

If you use MEDiCINe or a derivative of it in your work, please cite it as follows:

@article {Watters2024.11.06.622160,
	author = {Watters, Nicholas and Buccino, Alessio P and Jazayeri, Mehrdad},
	title = {MEDiCINe: Motion Correction for Neural Electrophysiology Recordings},
	elocation-id = {2024.11.06.622160},
	year = {2024},
	doi = {10.1101/2024.11.06.622160},
	URL = {https://www.biorxiv.org/content/10.1101/2024.11.06.622160},
	eprint = {https://www.biorxiv.org/content/10.1101/2024.11.06.622160.full.pdf},
	journal = {bioRxiv}
}
